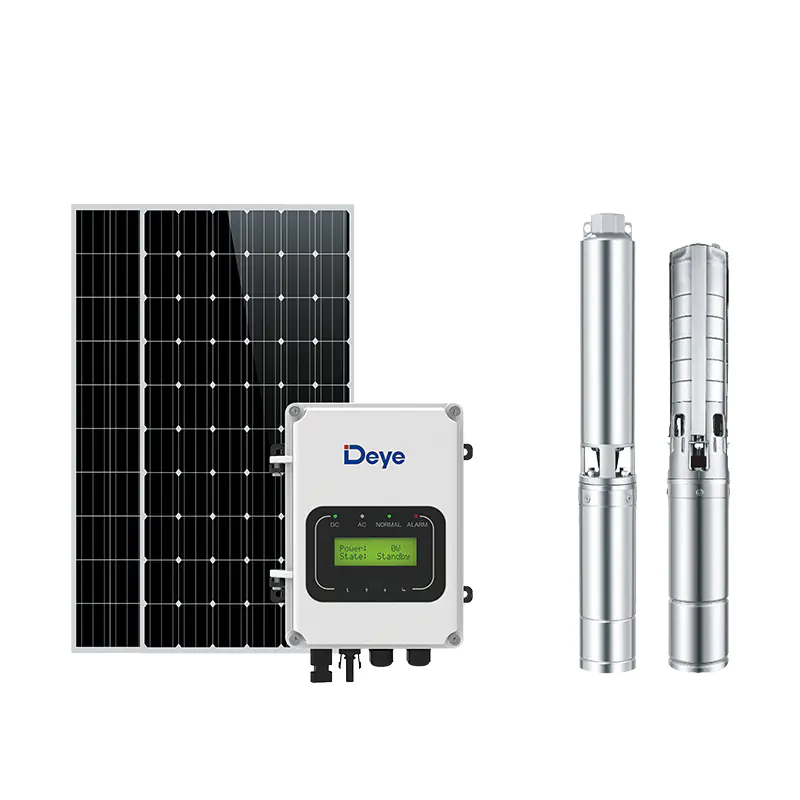

DC Solar Water Pump is designed to operate directly on power generated by solar panels without the need for an inverter. These pumps are ideal for remote locations, agricultural irrigation, livestock watering, and residential water supply.
Description
Advantages
Advantages
1. Solar pure DC input.
2. Maximum input current: 20A.
3. Operating humidity of the controller: 30%~90%
4. Automatically stops: When the water tank is full.
5. Direct current reverse protection and indicator light reminder.
6. Build in Solar MPPT Tech.
7. PMS motor: Position-free on field-oriented control.
9. Six protection functions: Overhigh/low voltage, Overcurrent low speed, open phase, start operation, and anti-reverse connection.
Data Sheet
Data Sheet
| 3″DC PLASTIC IMPELLER SOLAR WATER PUMP | ||||||
| Pump Model | Power   | Max.Flow (m³/h) | Max.Head(m) | Outlet (Inch) | Control Model | |
| W | HP | |||||
| 3F750/PC3.8-95 | 750 | 1 | 3.8 | 95 | 1.25″ | DYF-900DC |
| 3D1500/PC3.8-180 | 1500 | 2 | 180 | DYD-1500DC | ||
| 3″DC STAINLESS STEEL IMPELLER SOLAR WATER PUMP | ||||||
| Pump Model | Power   | Max.Flow (m³/h) | Max.Head(m) | Outlet (Inch) | Control Model | |
| W | HP | |||||
| 3D1500/SC4.8-140 | 1500 | 2 | 4.8 | 135 | 1.25″ | DYD-1500DC |
Â
3″DC Plastic Impeller Solar Water Pump
| 3F750/PC3.8-95 | |||||||||
| Q | m³/h | 0 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 |
| L/min | 0 | 5 | 10 | 20 | 30 | 40 | 50 | 60 | |
| US.GPM | 0 | 1.3 | 2.6 | 5.3 | 7.9 | 10.6 | 13.2 | 15.9 | |
| H | m | 95 | 93 | 88 | 78 | 65 | 49 | 30 | 11 |
| 3D1500/PC3.8-180 | |||||||||
| Q | m³/h | 0 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 |
| L/min | 0 | 5 | 10 | 20 | 30 | 40 | 50 | 60 | |
| US.GPM | 0 | 1.3 | 2.6 | 5.3 | 7.9 | 10.6 | 13.2 | 15.9 | |
| H | m | 180 | 171 | 161 | 143 | 119 | 90 | 55 | 20 |
Click to view the data sheet:Â 3″DC Plastic Impeller Solar Water Pump 3PC-3.8T
3″DC Stainless Steel Impeller Solar Water Pump
| 3D1500/SC4.8-140 | |||||||||
| Q | m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 |
| L/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | |
| US.GPM | 0 | 2.6 | 5.3 | 7.9 | 10.6 | 13.2 | 15.9 | 18.5 | |
| H | m | 140 | 133 | 126 | 114 | 98 | 80 | 62 | 45 |
Click to view the data sheet:Â 3″DC Stainless Steel Impeller Solar Water Pump 3SC-4.8T
