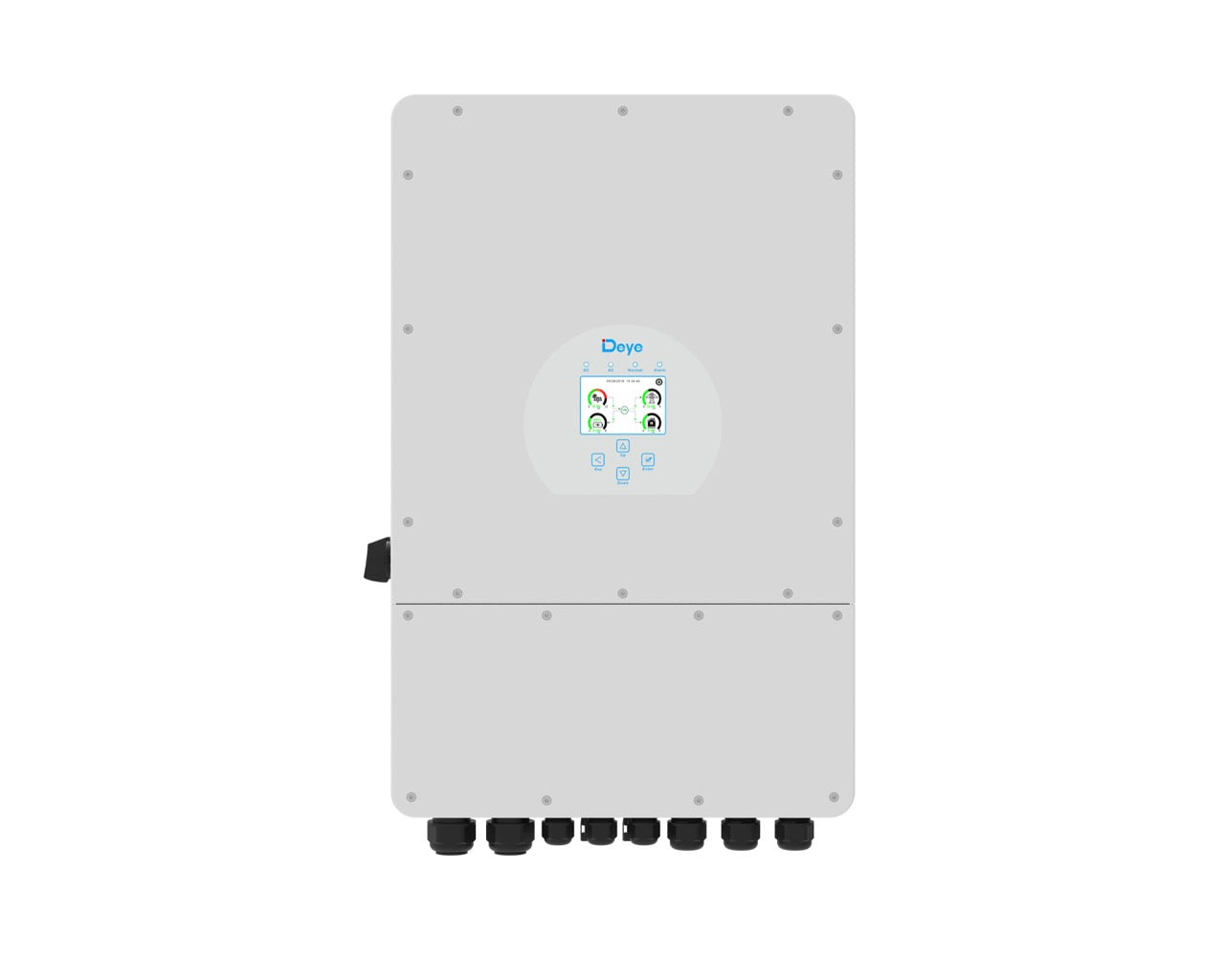

Deye 5kW Three Phase 2 MPPT Hybrid Inverter LV Battery Support SUN-5K-SG04LP3-AU

SUN-5K-SG04LP3-AU | 5kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported

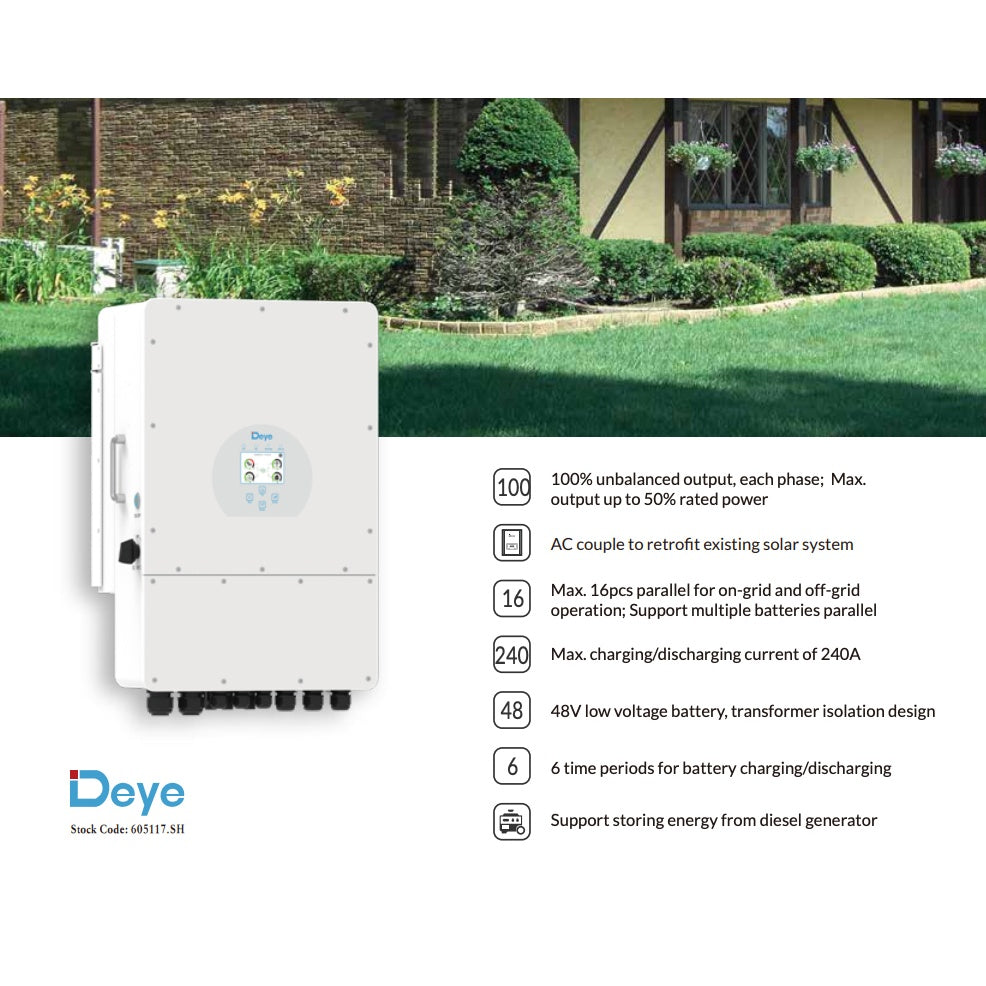

Higher yields / Safe & Reliable / Smart / User-friendly

100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 16pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator

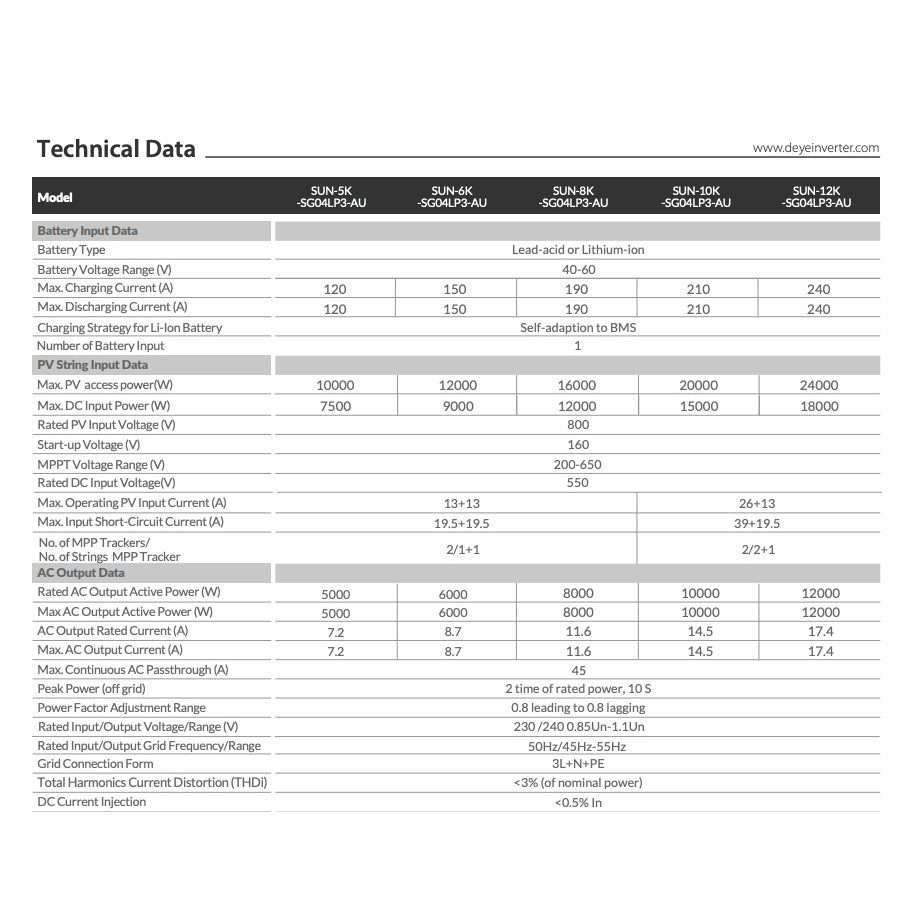

Model: SUN-5K-SG04LP3-AU

Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 120
Max. Discharging Current (A): 120
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1

PV String Input Data
Max. DC Input Power (W): 7500
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 19.5+19.5
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/1+1

AC Output Data
Rated AC Output Active Power (W): 5000
Max AC Output Active Power (W): 5000
AC Output Rated Current (A): 7.2
Max. AC Output Current (A): 7.2
Max. Continuous AC Passthrough (A): 45
Peak Power (off grid): 2 time of rated power, 10 S

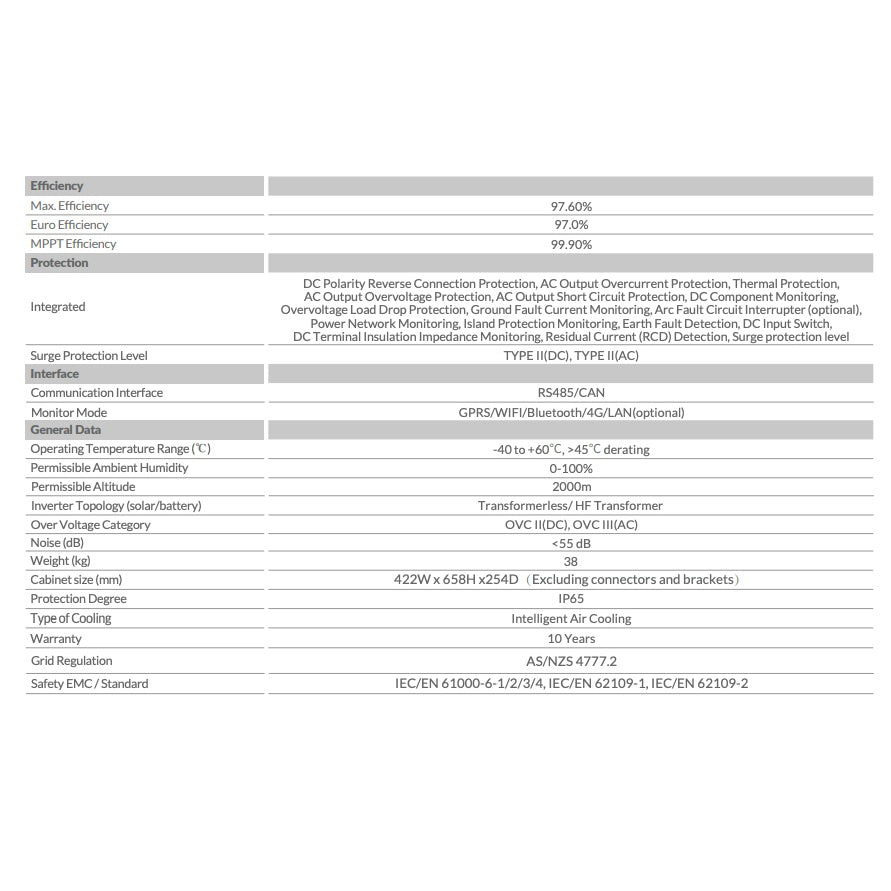

Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%

General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
Protection Degree: IP65

Install info professional service support! Communication with battery service support!
