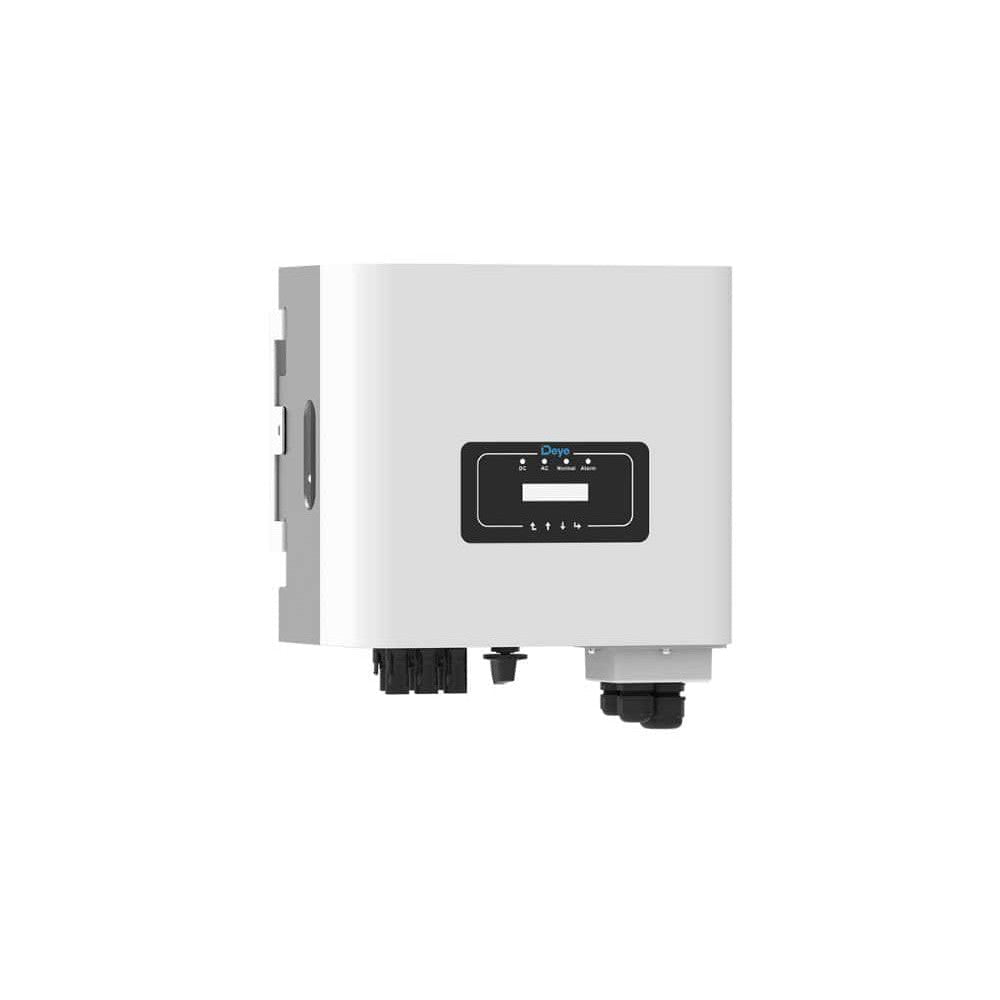

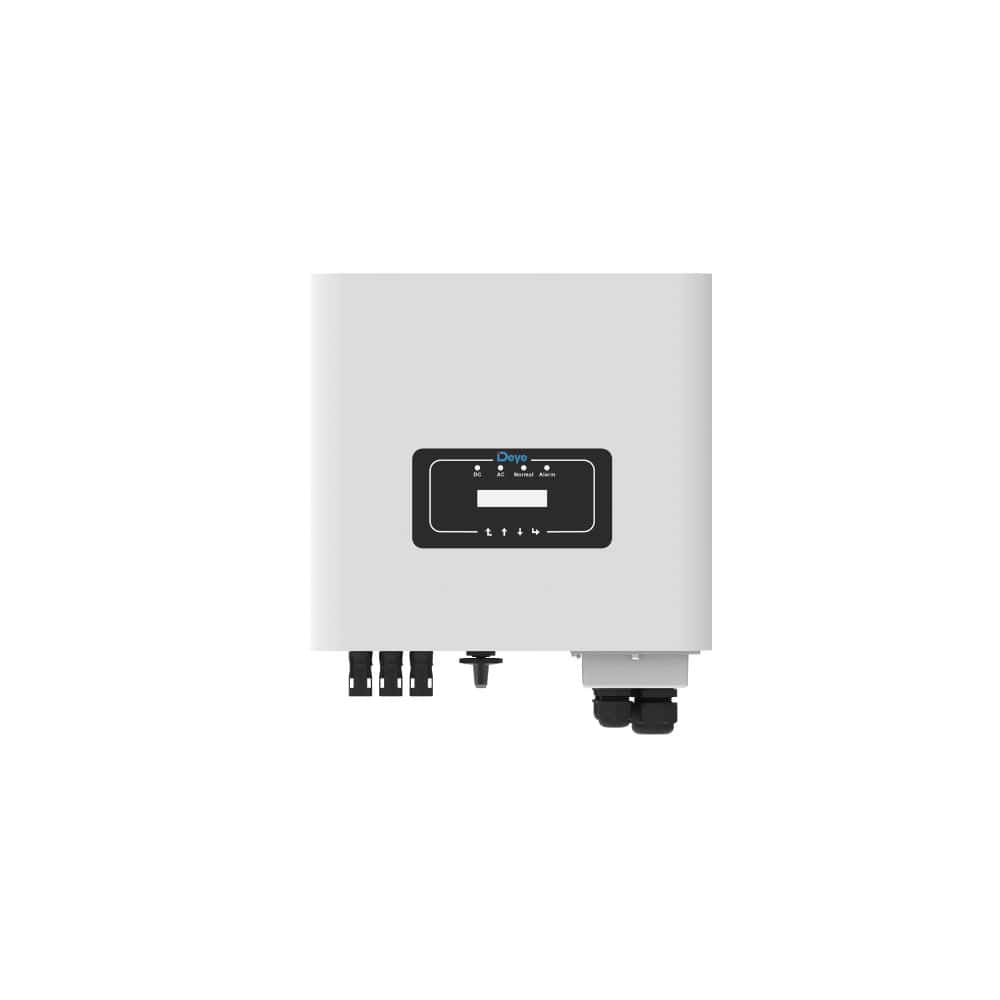

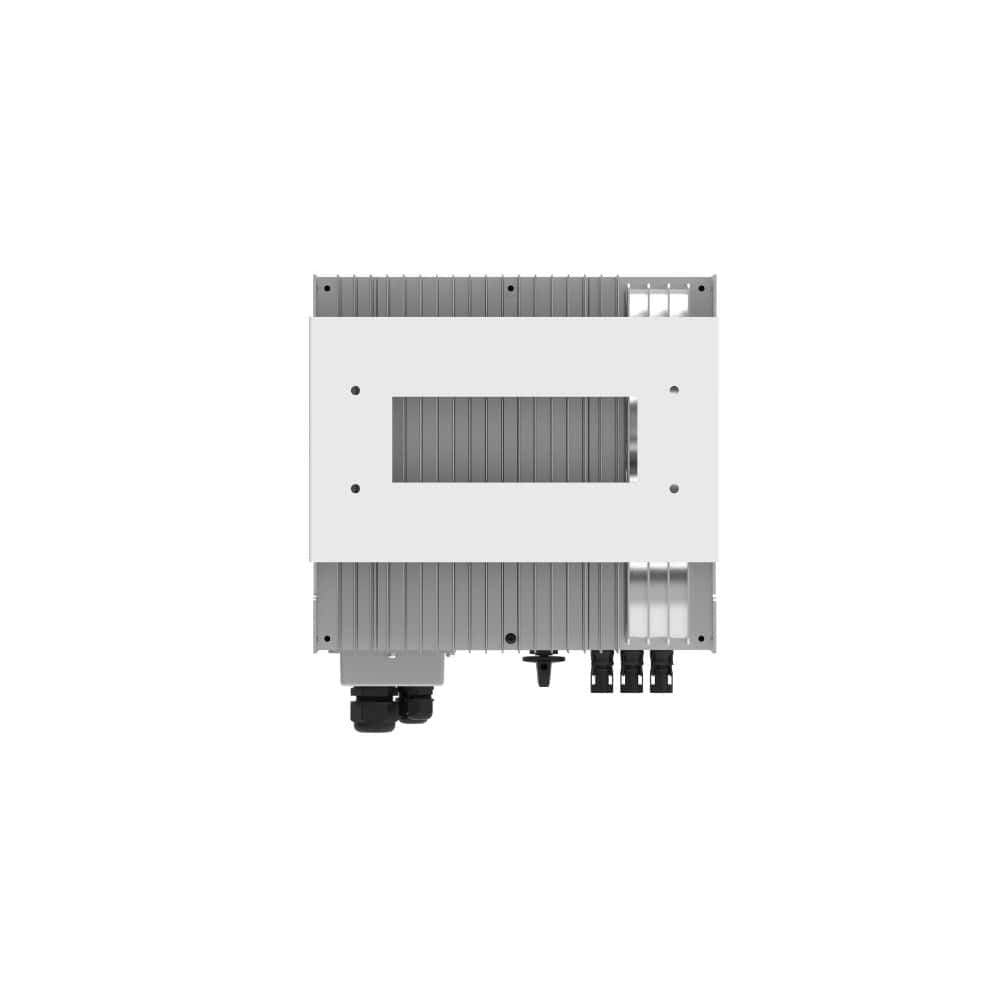

Deye SUN-8K-G02P1-AU-AM2 8kW Grid Tied Single Phase String Inverter 2 MPPT

SUN-8K-G02P1-AU-AM2 | 8kW | Single Phase | 2 MPPT

2 MPP trackers, Max. efficiency up to 97.7%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)
Low start-up voltage of 80V

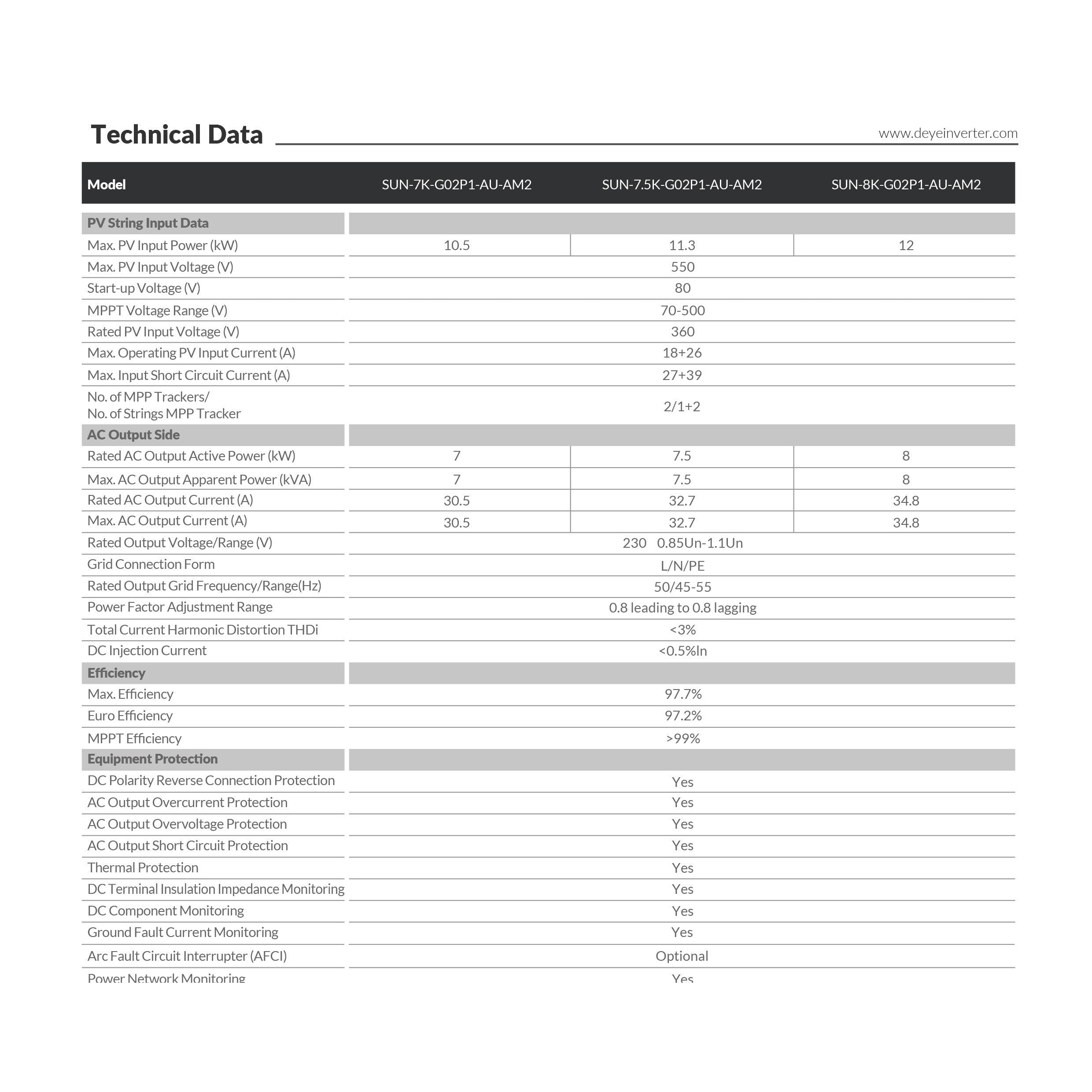

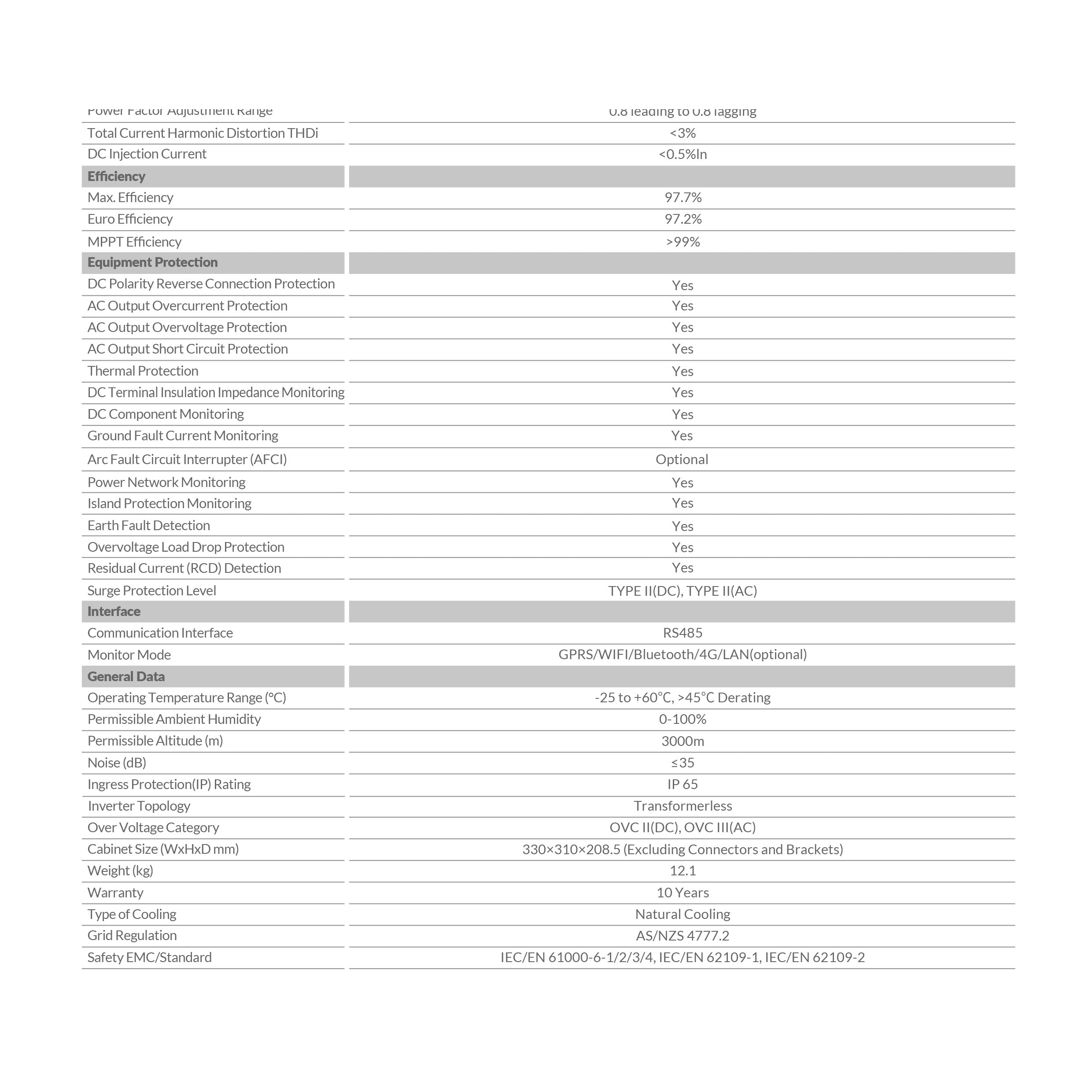

Technical Specifications:

Model: SUN-8K-G02P1-AU-AM2

PV String Input Data
Max. PV Input Power (kW): 12
Max. PV Input Voltage (V): 550
Start-up Voltage (V): 80
MPPT Voltage Range (V): 70-500
Rated PV Input Voltage (V): 360
Max. Operating PV Input Current (A): 18+26
Max. Input Short Circuit Current (A): 27+39
No. of MPP Trackers/ No. of Strings MPP Tracker: 2/1+2

AC Output Side
Rated AC Output Active Power (kW): 8
Max. AC Output Apparent Power (kVA): 8
Rated AC Output Current (A): 34.8
Max. AC Output Current (A): 34.8
Rated Output Voltage/Range (V): 230

Efficiency
Max. Efficiency: 97.7%
Euro Efficiency: 97.2%
MPPT Efficiency: >99%

Equipment Protection
DC Polarity Reverse Connection Protection
AC Output Overcurrent Protection
AC Output Overvoltage Protection
AC Output Short Circuit Protection
Thermal Protection
DC Terminal Insulation Impedance Monitoring
DC Component Monitoring
Ground Fault Current Monitoring
Power Network Monitoring
Island Protection Monitoring
Earth Fault Detection
Overvoltage Load Drop Protection
Residual Current (RCD) Detection
Arc Fault Circuit Interrupter (AFCI): Optional

Interface
Communication Interface: RS485
Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)

General Data
Operating Temperature Range (°C): -25 to +60°C, >45°C Derating
Cabinet Size (WxHxD mm): 330x310x208.5 (Excluding Connectors and Brackets)
Weight (kg): 12.1
Warranty: 10 Years
Grid Regulation: AS/NZS 4777.2
Safety EMC/Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
