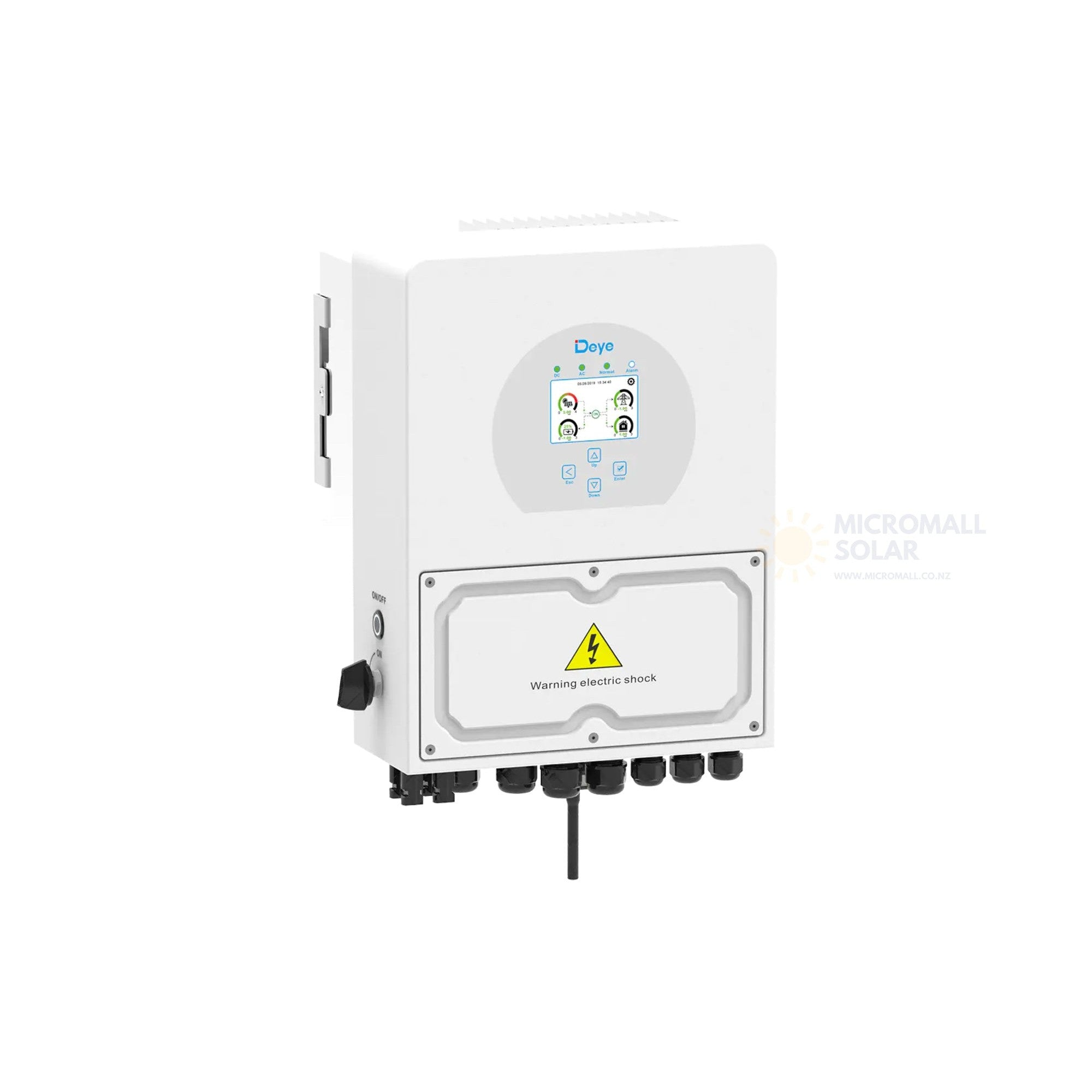

Deye 6kW Single Phase 2 MPPT Hybrid Inverter SUN-6K-SG04LP1-AU

SUN-6K-SG04LP1-AU | 6kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly

Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 135A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

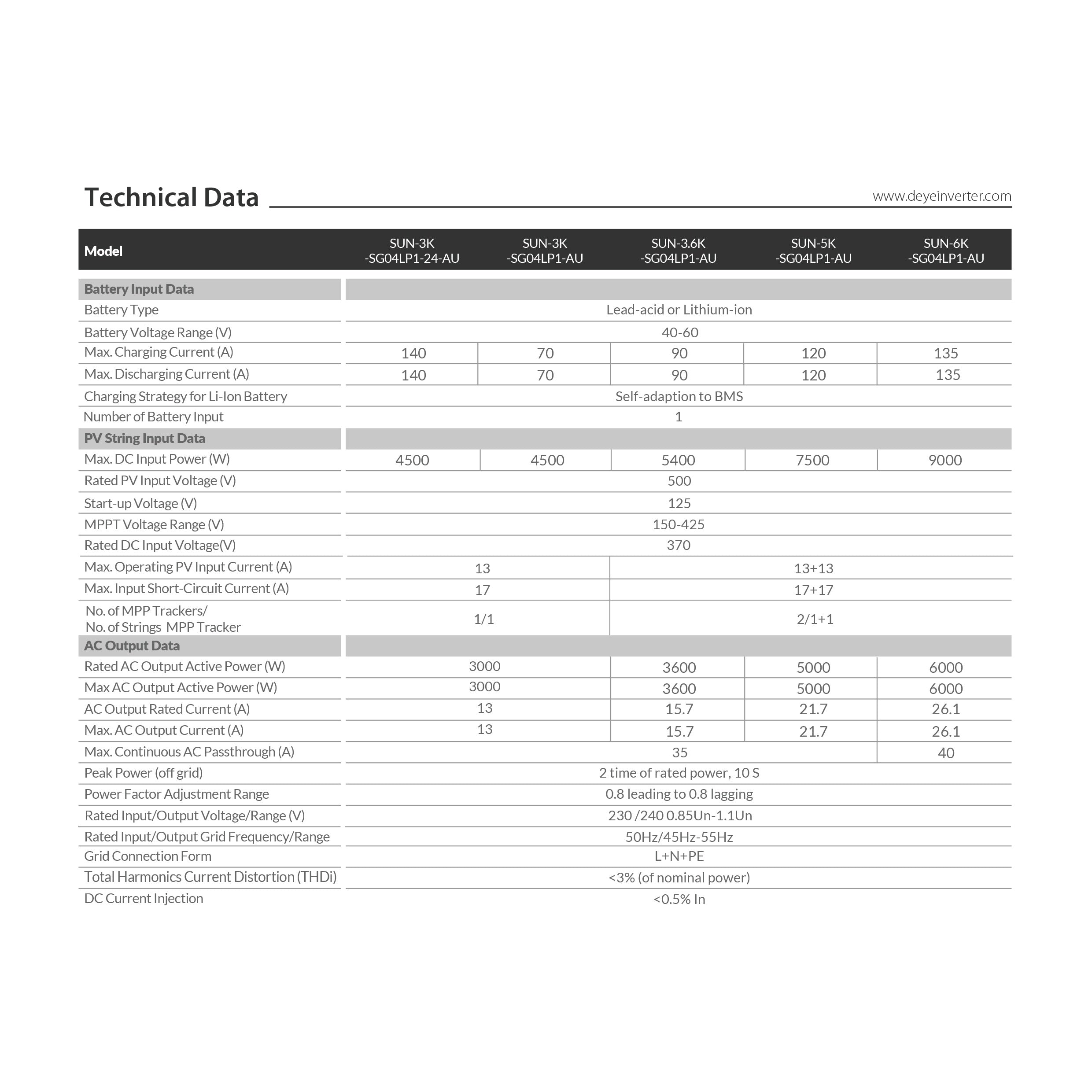

Model: SUN-6K-SG04LP1-AU

Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 135
Max. Discharging Current (A): 135
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1

PV String Input Data
Max. DC Input Power (W): 9000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 17+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1

AC Output Data
Rated AC Output Active Power (W): 6000
Max AC Output Active Power (W): 6000
AC Output Rated Current (A): 26.1
Max. AC Output Current (A): 26.1
Max. Continuous AC Passthrough (A): 40
Peak Power (off grid): 2 time of rated power, 10 S

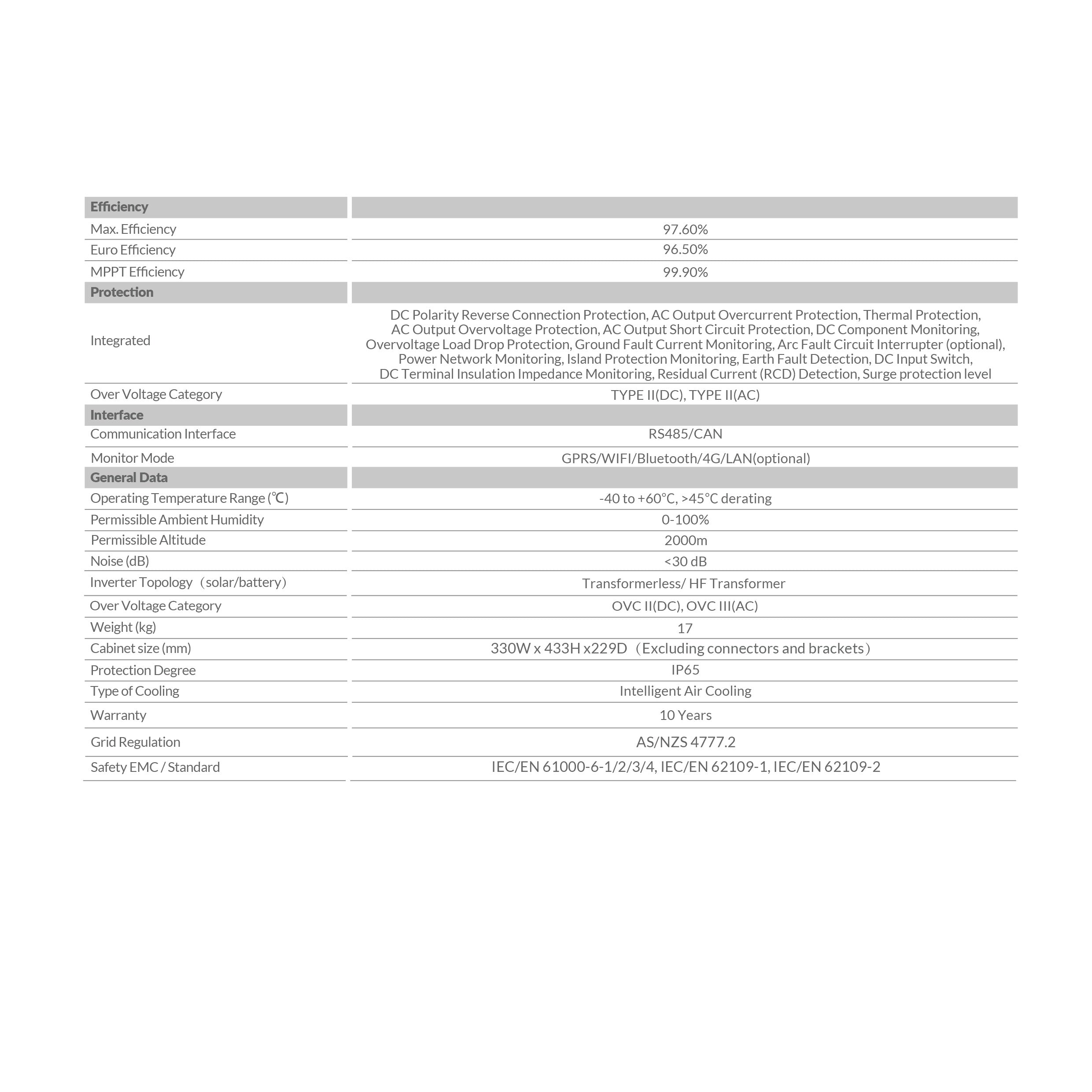

Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%

General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65

Professional installation and service support.
Dedicated communication with battery service assistance.
