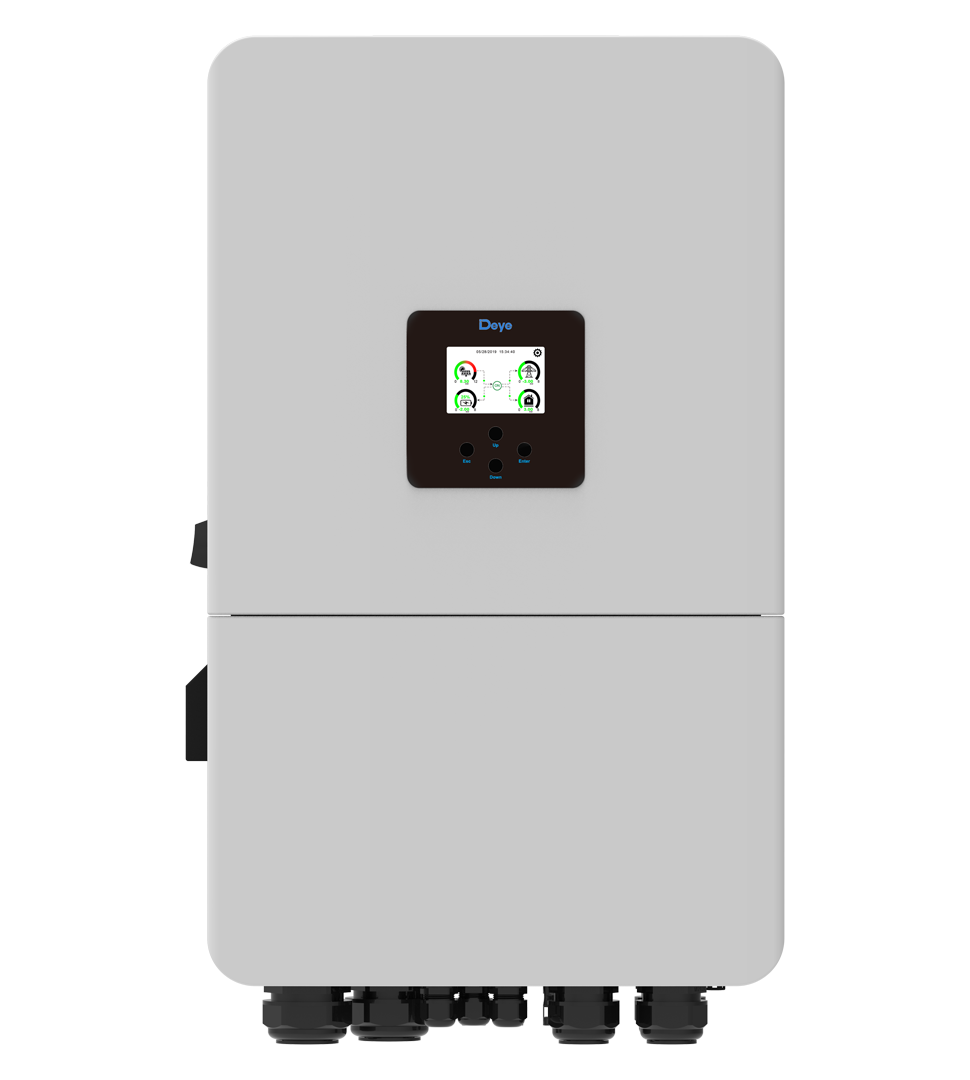

Deye SUN-20K-SG05LP3-AU 20kW Three Phase Hybrid Inverter

Deye SUN-20K-SG05LP3-AU 20kW Three Phase Hybrid Inverter

Power your world without compromise  store more, waste less, and stay in control.

The Deye SUN-20K-SG05LP3-AU-SM2 is a 20kW three-phase hybrid inverter built for homes and businesses that refuse to settle. With dual MPPT trackers, intelligent battery management, and a rugged transformer-isolated design, it squeezes every usable watt out of your solar array while keeping your power supply safe, smart, and effortlessly simple to live with.

Higher Yields. Safe & Reliable. Smart. User-Friendly.

Why it stands out

True flexibility, phase by phase. Enjoy 100% unbalanced output across each phase, with up to 50% of rated power available per phase so your real-world loads get power exactly where they need it, not just where the rulebook says.

Built to grow with you. AC-couple it to retrofit an existing solar system, or scale up by paralleling up to 10 units for both on-grid and off-grid operation. Add multiple batteries in parallel and expand your storage on your terms.

Charge fast, discharge hard. With up to 350A of charging and discharging current, your battery bank refills quickly and delivers when demand spikes.

Ready for anything. Store energy from a diesel generator for true backup resilience, and program 6 separate time periods for battery charging and discharging to take full advantage of off-peak tariffs.

Engineered for peace of mind. A 48V low-voltage battery system with transformer isolation design delivers safer, more reliable performance backed by an IP65 rating for confident indoor or outdoor installation.

Performance at a glance

• Solar input: Up to 30,000W PV power, 2 MPP trackers, MPPT range 160–650V, max efficiency of 97.60%
• AC output: 20,000W / 20,000VA rated, with peak off-grid power at 2× rated for 10 seconds
• Battery support: Lead-acid or Lithium-ion, self-adapting to your BMS, 350A charge/discharge
• MPPT efficiency: Greater than 99%

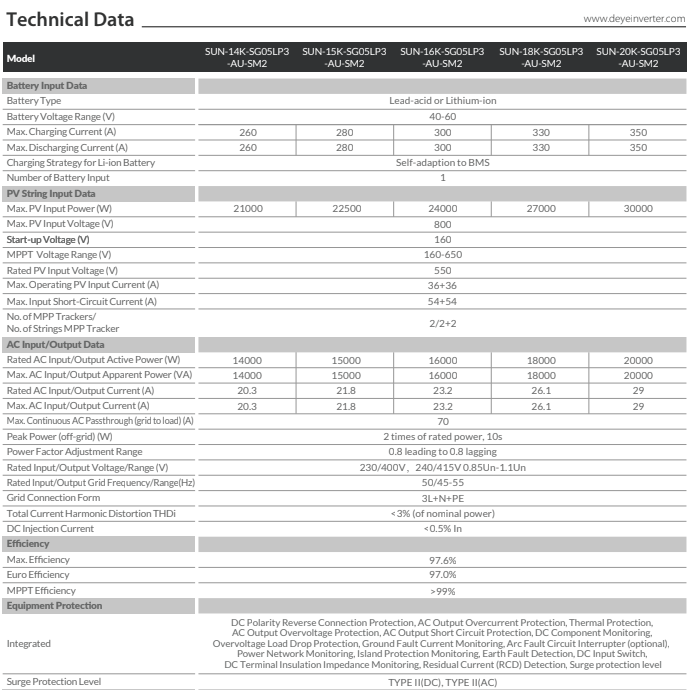

Quick specifications
